Toma Model Works

HOn30 Porter 0-4-0 saddle tank kit

Regular price ¥21,000 ¥0 Unit price per

Prototype

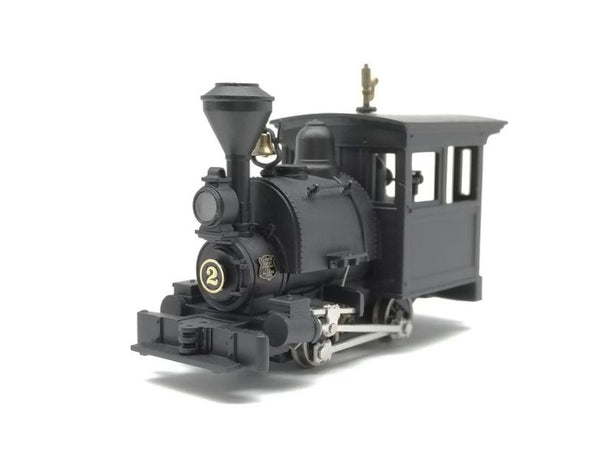

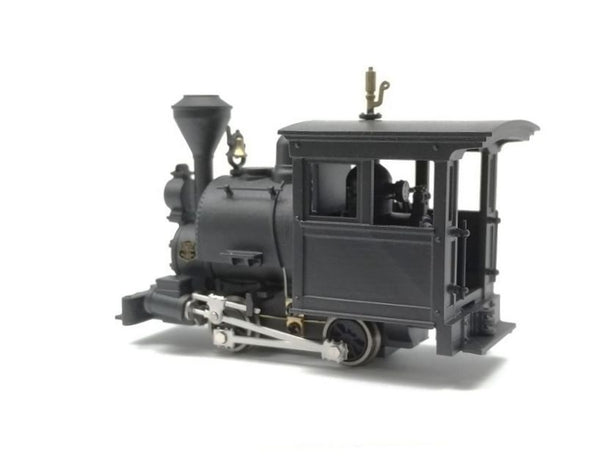

Porter 8-ton 0-4-0 saddle tank, fluted domes.
There are two types: fluted domes and round domes. Please choose the one you like.

Instruction
See the URL on the label of the package box. You can easily access by scanning the QR code that also printed on the label with your cell phone camera.

Features

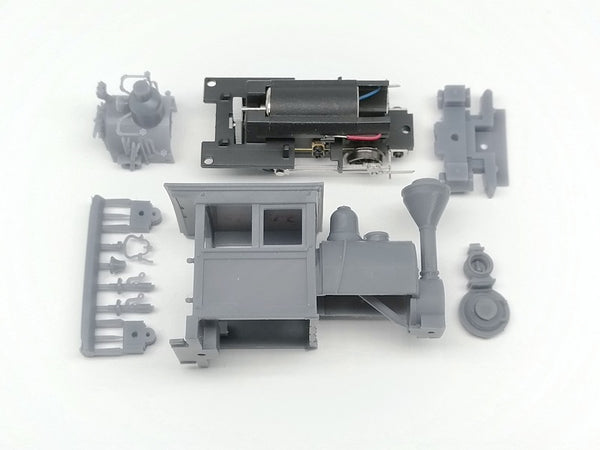

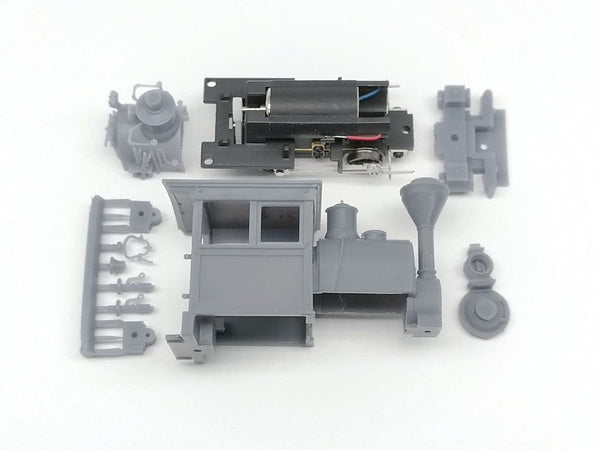

- HOn30, 3.5mm scale 9mm gauge. The kit includes ready-to-run drive chassis, 3D printed body, detail parts and builders plates, not included knuckle couplers. Overall dimensions are L52.2xW21.6xH30.5mm (end steps x cab side x rails to roof top).

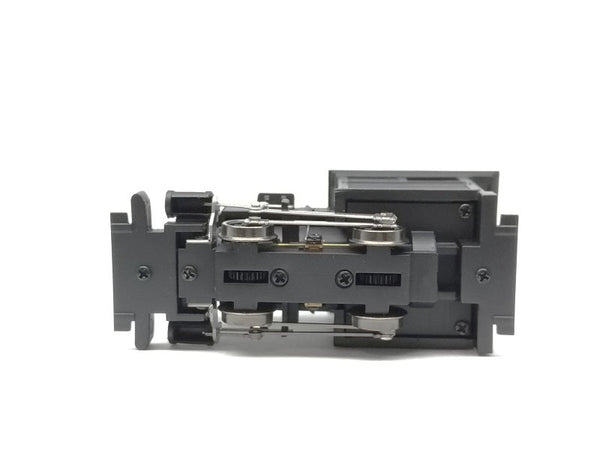

- Our 12V coreless motor, M0.2 gear system are used on the chassis that enables realistic run from extremely low speed (50mm/s-6V*). The drive chassis is coated to reduce wear and already painted black.
The spur gears in the photo are plastic, but it has been changed from plastic to brass.
- The parts are made of 3D printed high performance UV resin. All supports are already removed so there is no need to worry about damage to parts. It can be completed with super glue and tapping M1.4mm & screwing. No soldering required.
- As with other plastic models, it can be painted with surfacers and paints for plastic models.
- Micro-Trains #1015 couplers will fit to the end beams. (Not included)
*Millimeter speed per second at 6V that was calculated from no-load motor rotation speed.

#1121 Fluted domes
#1122 Round domes
