Toma Model Works
HOn3 Porter 0-4-0 saddle tank with tender kit
Regular price
¥24,000
Prototype

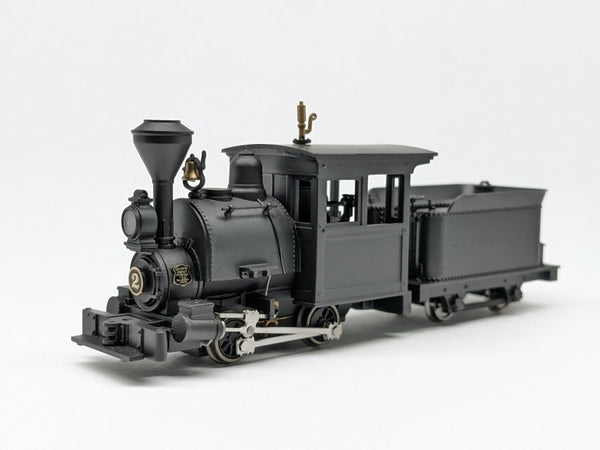

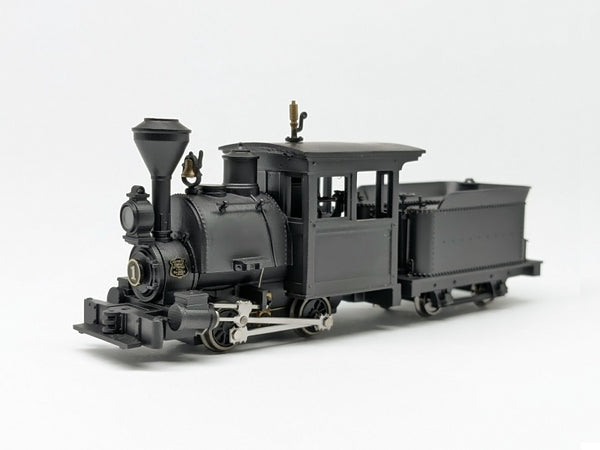

Porter 8-ton 0-4-0 saddle tank with tender.
There are two types: fluted domes and round domes. Please choose the one you like.
Instruction
See the URL on the label of the package box. You can easily access by scanning the QR code that also printed on the label with your cell phone camera.
Features

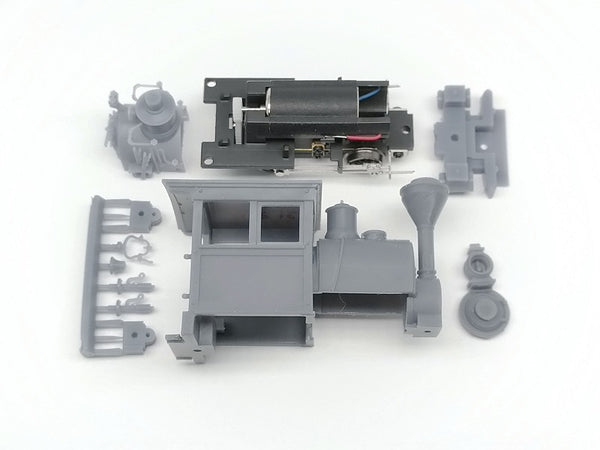

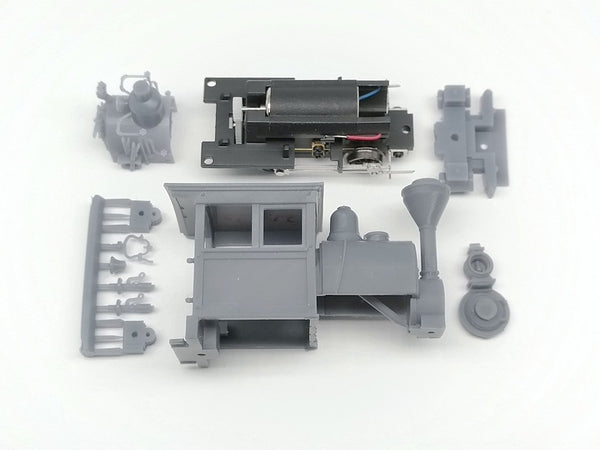

- HOn3, 3.5mm scale 10.5mm gauge. The kit includes ready-to-run drive chassis, 3D printed body, detail parts and #5721 builders plates. A 3D printed knuckle coupler is also included, but if you want to change to Micro Trains coupler, #1015 will fit.
- The wheels are regauged from HOn30 so the width is bit thinner than NMRA standard but runs on HOn3 turnouts with no problem. (we tested on PECO)

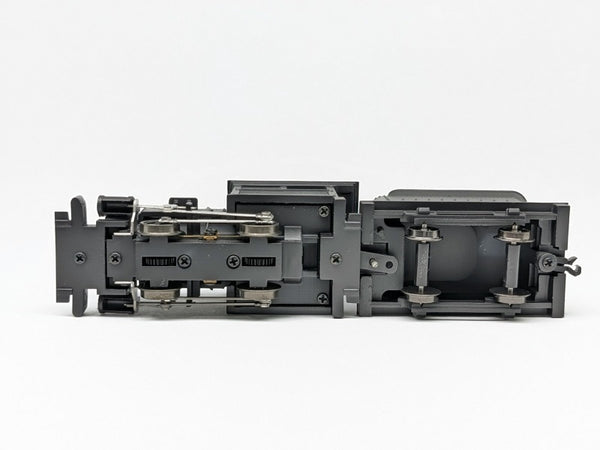

- Our 12V coreless motor, M0.2 gear system are used on the chassis that enables realistic run from extremely low speed (50mm/s-6V*). The drive chassis is coated to reduce wear and already painted black.
- The parts are made of 3D printed high performance UV resin. All supports are already removed so there is no need to worry about damage to parts. It can be completed with super glue and tapping M1.4mm & screwing. No soldering required.
- As with other plastic models, it can be painted with surfacers and paints for plastic models.
- Micro-Trains #1015 couplers will fit to the end beams. (Not included)
*Millimeter speed per second at 6V that was calculated from no-load motor rotation speed.
#1401 Fluted domes
#1402 Round domes
